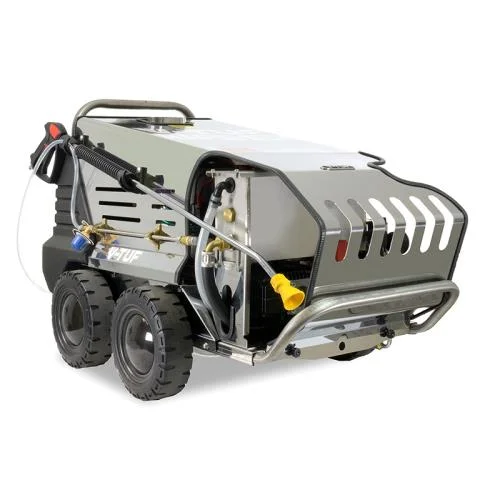

RAPID VTS 1620HPC MOBILE HOT PRESSURE WASHER 415V – 200Bar – 16L/Min
Why order this pressure washer? STAINLESS STEEL COVER & CHASSIS, SUPER SERIES PUMPS 200Bar Working Pressure, Air-cooled Motor – MOTOR POWER (HP @ 1400RPM): 7.5HP 5.5KW, CHEMICAL FEATURE: HIGH PRESSURE APPLICATION (ADJUSTABLE DOSAGE), RUN SYSTEM PROTECTION: AUTO STOP/START WITH 1 HOUR SHUT DOWN, WATER TEMPERATURE: 0-150°C, POWER SUPPLY (VOLTAGE): 415V (3 Phase) – Comes with 32AMP 5 pin plug as standard (alternatives available), WEIGHT: 150kg, DIMENSIONS (L X W X H) cm: 118 X 73 X 87cm
The VTUF The RAPIDVTS1620HPC stainless steel built pressure washer has been developed by the user to satisfy the requirements for the ideal hot pressure washer for high performance efficient cleaning on 415 volt electric supply.
Performance: High flow 16 litres per minute; 3000PSI (200BAR) on 415 volt electric supply.
The RAPID VTS 16200HPC’s 100% 304 STAINLESS STEEL CONSTRUCTION (chassis, cover, water tank and boiler housing) makes it one of the toughest and corrosive resistant machines.
The VTUF RAPID VTS 16200HPC has a high pressure chemical feature to give the detergent deep penetration in to dirt and grease.
Hot water cleaning combined with high water flow makes tough cleaning tasks light work!
Highly efficient large vertical stainless case boiler.
VTUF The RAPID VTS1620 HPC offers you the following advantages and benefits:
Quieter running – Sound Level – Sound Level : up to 10% less than some of its competitors
Tough, easy running pump – The proven V-TUF XHDM400SS low revving European pump is 200 bar rated with a heavy duty crankshaft design with hard wearing ceramic plungers and a brass pump head. Servicing is straight forward and spares availability is excellent.
The XHDM400SS pump is lubricated with top specification V-TUF PRESSURE LUBE ( PL500 ) which contains MSM which virtually eliminates friction and wear. Pump lube level visible from outside the machine.
Pressure can be regulated and the regulation wheel is direct on the pump and easy to reach.
High efficiency double pass heat exchanger with 3 second purge time offers you hotter water while using less fuel and clean combustion.
The simple but robust stainless steel control panel is easy to operate and maintain with clear visible warning lights. The control circuit is a safe 24 volt low tension electrical control with IP56 electric protection.,,
VTUF DPS (Digital Protection System) means:
Delayed Auto stop (30 second delay stop motor with immediate start) – reduces wear on motor and pump
The machine will shut down after 1 hour is not used – safety and reduced fire risk
Low Water Cut-Out – reducing expensive damage from water shortage.
Air-cooled Motor – The machine will stop if the motor over heats
Water leak detection shut off – reducing unnecessary wear and expense.
Safety pressure valve : visible and direct on the pump (following all European regulations).
Stainless steel double lance holder on both sides of the cover.
Low Fuel Cut Out – to prevent damage to the fuel system
Complete machine safety shut down if the unit is not used for an hour
4 x large robust wheels – ideal for rough terrain
Quick release KTQ 350 bar tufGUN lance system with 10m of 3/8 hose and DURAKLIX ® 10m MSQ Heavy Duty coupling system,
Chemical injection system with Micro-Controllable Detergent flow regulator
XHDM400SS Pump service kits: SEAL 4 ;
Burner Nozzle T6.1.3580H,,
FEATURES:
Low Rev Motor With Thermal Protection
Fuel, Water and detergent protection filters
3 Second delayed boiler star up.
Low Water Cut-Out.
Low Fuel Cut Out
Complete machine shut down (1Hr – No use)
Power, Fuel, Water, Shutdown mode dashboard
100% Stainless Steel Protective Cover
100% 304 Stainless Steel Chassis – with crane attachment points
4 large robust wheels for tough terrain
Large 24ltr easy fill, removable fuel tank.
Large High efficiency double pass heat exchanger
Chemical injection system
Steam stage (Optional)
SUPER SERIES Crank shaft pump with ceramic and brass and components. Excellent spares availability.
Low rev Auto Stop/Start motor.
Bypass valve & safety valve
Pressure gauge.
Burner control with flow switch and thermostat
24v low tension control system.
