Description

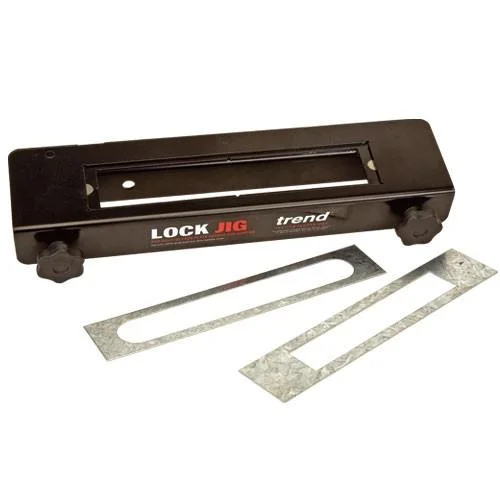

For routing the face-plate and mortise for larger locks quickly & accurately.
Suitable for DDA (Disabilty Discrimination Act) lock size.
20mm x 235mm radius end face plate and 17mm x 170mm mortise.
Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG).
Suitable for doors 34mm to 58mm thick.
An auger bit and drill is required to complete deep mortises.
The jig requires a plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter.
