Description

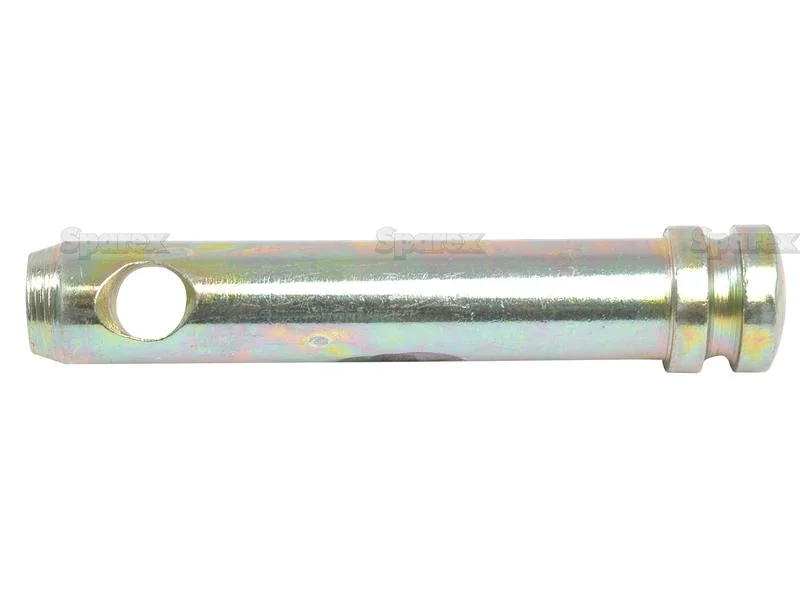

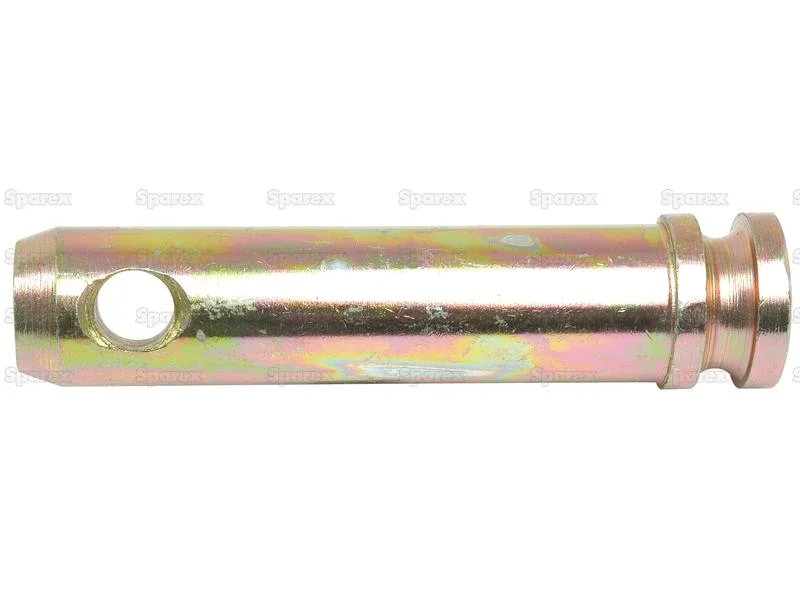

Top link pin 20x83mm Cat. 1
Pin Ø: 20mm, Working length:83mm, Overall length: 117mm, Head Ø: 24mm, Hole Ø: 12mm
Product Specifications
A Ø ins : 15/32A Ø mm : 12A ins : 4 5/8A mm : 117
B Ø ins : 15/16B Ø mm : 24B ins : 3 7/8B mm : 99
C ins : 3 1/4C mm : 83Category : 1Head Ø ins : 31/32Head Ø mm : 24Hole Ø ins : 1/2Hole Ø mm : 12Overall length ins : 4 5/8Overall length mm : 117Pin Ø ins : 25/32Pin Ø mm : 20Pin Type : StandardTariff Code : 8708999712Working length ins : 3 9/32Working length mm : 83
