Description

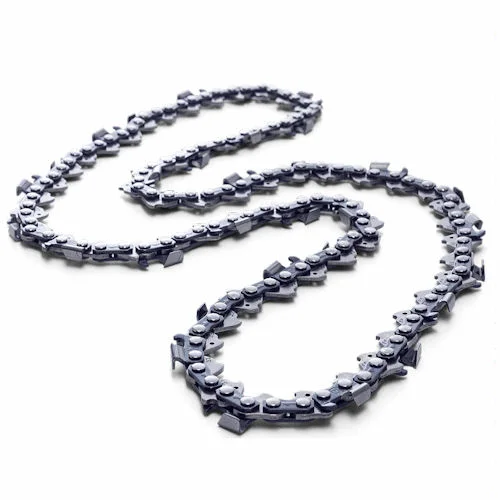

Oregon 90PX Chain 3/8in Micro Lite 1.1mm 69 Link

90PX chain is part of a Micro-Lite narrow-kerf cutting system that requires less power from the saw to cut than standard cutting systems.This is a quality Oregon Chain Loop – do not confuse with cheap, inferior chain.

* 90PX is a low-kickback chain
* Low-vibration chamfer-chisel cutters have an angular shape with twin cutting corners for excellent performance and edge-holding durability
* Narrow .043″ gauge helps reduce the weight of the bar-chain combination approximately 15%
* Always install 90PX chains on a .043″ gauge Micro-Lite bar (MLE part numbers) to obtain all the advantages of the Micro-Lite system. 90PX chain does not fit .050″ gauge bars intended for 91-series chains
* Top-plate witness mark makes accurate sharpening easier
* LubriLink tie straps help keep oil where it’s needed – on the chain
* Vibe-Ban chassis design reduces vibration 25% or more at the chainsaw’s handles
* LubriWell oil holes help carry oil around the full length of the guide bar’s groove

CHECK THE MEASUREMENTS BELOW PITCH= 3/8″ Micro Lite
GAUGE= 1.1mm (0.043)
LINKS= Your Choice

OK SO WHAT DOES THAT MEAN……? Pitch- the distance between any 3 of the rivets on the chain then divided by 2 Gauge- the measurement between the rails of your guide bar Links- the number of each links on your chain that sit into the guide bar
