Description

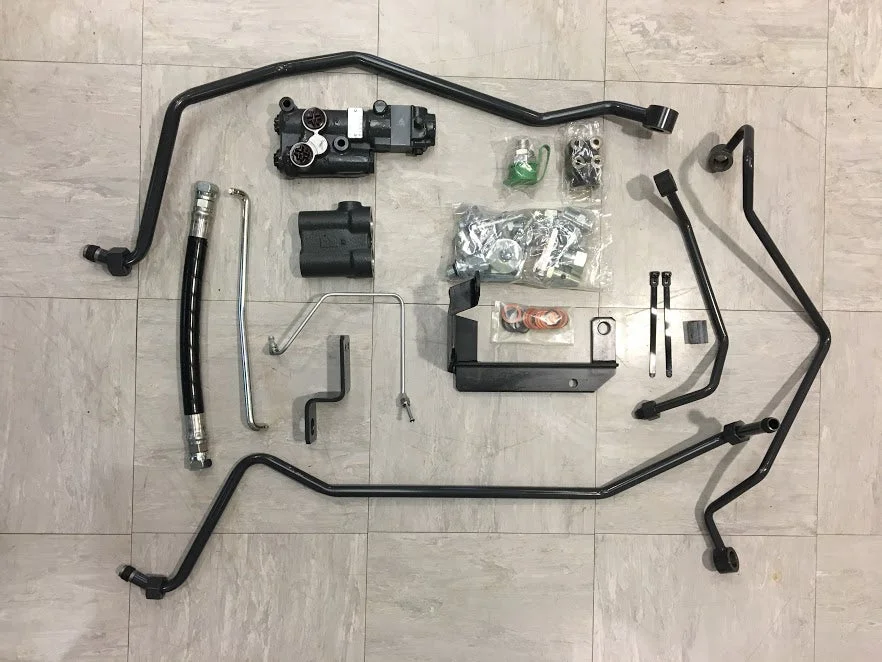

This kit contains the following Kubota part numbers:
3C254-97661 Instructions and Parts List
010 3C264-69120 PART NAME Q’TY REMARKS I STAY (VALVE TB) x1
020 01138-51445 BOLT SEMS x1 9T
030 01133-51025 BOLT SEMS x1 7T
040 01138-51655 BOLT SEMS x1 9T
050 70234-56270 WASHER
060 3P903-69110 VALVE (TRAILER BRAKE) x1 CAB only – Rexroth R917 005 787 14W13-0359
070 01754-50860 BOLT FLANGE z1
080 3F243-69180 BOLT JOINT x2 7T 1
090 04724-00180 GASKET x2
100 3C264-82740 COMP. PIPE (DELIVERY, 2) x1
110 06012-51843 JOINT PIPE x1
120 04817-00180 ORING xI
130 3C284-82762 FLANGE (DELIVERY LOADER) x1
140 3C264-82870 1 STAY DELIVERY x1
150 01125-50820 BOLT, WSEMS x2 7T
160 01123-50820 BOLT x2
170 3A154-69280 BOLT. JOINT (M18 x 1.5) x1
180 04724-00180 GASKET x2
190 3C264-69330 COMP. PIPE NT TB) x1
200 3C264-69280 BOLT JOINT (M20 x 1.5) x1
210 04724-00200 PACKING x2
220 3C001-82742 COMP. PIPE, DELIVERY x1
230 06012-51543 JOINT PIPE x1
240 04816-00180 0 RING x1
250 3C081-82760 PLUG, DELIVERY x2
260 04816-00240 ORING x2
270 06312-10030 PLUG x1
280 3C254-69912 MANUAL INSTRUCTION x1
290 3C284-82824 FLANGE (PUMP) x1
300 04817-00200 ORING x1
310 01023-50645 BOLT SEMS x1 7T
320 06115-54047 JOINT x1
330 04816-00180 ORING x1
340 3C264-82730 HOSE (DELIVERY 1) x1
350 TD170-66710 TUBE PIPE x1
360 3A154-69350 JOINT PIPE x1
370 04724-00180 GASKET x1
380 3C264-69310 COMP. PIPE (VC TB) x1
390 3C254-69160 ASSY COUPLER MALE x1
400 3C264-69510 STAY x1
410 01123-50825 BOLT, SEMS x2 7T
420 3A154-69280 BOLT, JOINT (M18 x 1.5) x1
430 04724-00180 GASKET x2
440 3C264-69240 COMP. PIPE (PILOT TB) x1
450 3C264-69250 JOINT x1
460 3C264-26340 PIN BRAKE SPRING x1
470 3C264-33060 ROD DIFF. LOCK x1 ROPS model onlv
480 53581-64150 BAND CORD x2
490 05511-50320 PIN SPLIT x1
Location Top M.F.01
