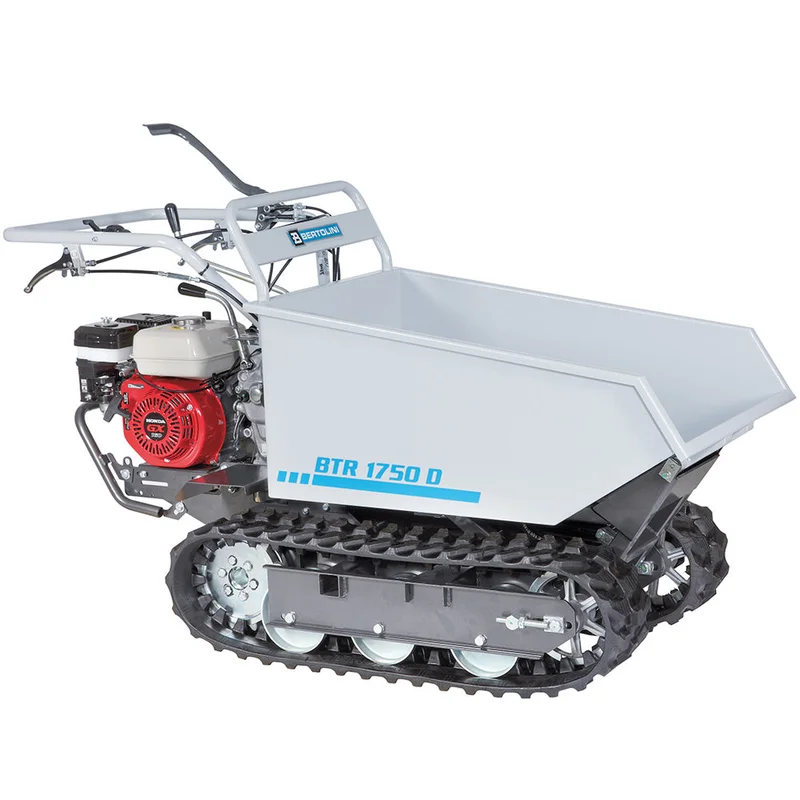

Description
| Brand | Bertolini |
| Engine Make | Honda |
| Engine Model | GX 160 OHV |
| Engine Type | 4-stroke petrol OHV |
| Engine Displacement | 163cc |
| Horsepower | 4.8hp |
| Start Method | Recoil |
| Transmission | With gears in oil bath |
| Clutch | Belt, with automatic disengatement when the control lever is released |
| Power Take-Off | Independent at 2,100rpm |
| Gearbox | 4 forward + 2 reverse |
| Speeds | 6 speeds Forward -1st: 1.88km/h / 2nd: 3.16km/h / 3rd: 4.13km/h Reverse – 1st: 1.86km/h / 2nd: 3.13km/h |
| Brake Type | With expansion and automatic cut-in when the clutch is released |
| Hopper Capacity | 550kg |
| Bed Size | L: 915mm x H: 620mm |
| Dump Angle | 60° |
| Tipping Mechanism | Hydraulic |
| Track Width | 1800mm Crawler contact surface: L: 600mm x W: 1800mm |
| Steering | With independently controlled releases and brakes |
| Turning Circle | Minimum radius: 700mm |
| Assembled Dimensions | L: 1575mm x W: 622mm x H: 900mm |
| Weight | 215.0kg |
| Warranty | 3 years for domestic use |
